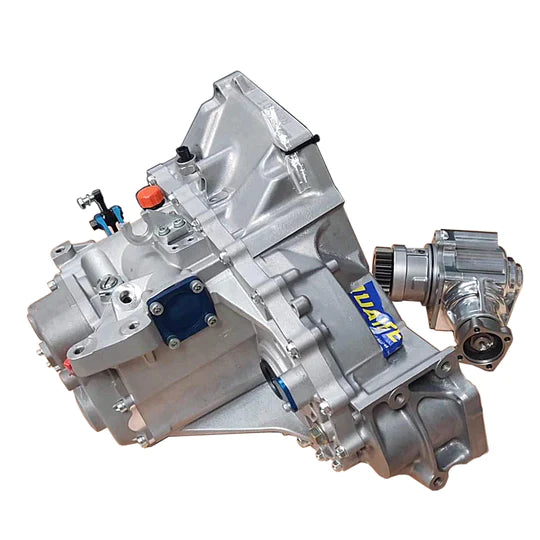

QUAIFE SEQUENTIAL GEARSET E8J V2 TRANSMISSION ASSEMBLY- TURBO FWD/ AWD (ASSEMBLED)

K-Series Sequential Assembled Transmission E8J V2 - FWD or AWD - With OEM Housings Options

QKE8J V2 is a 5-speed sequential gear kit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Integra. Ideally suited to circuit racing, drag racing and rally use it’s designed as a direct replacement for the standard six-speed H-pattern Honda transmission.

QKE8J V2 features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. A compact, drum style sequential gearchange mechanism and an open-face dog design ensure an ultra-rapid, positive gear sequential shift.

QKE8J V2 re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. Wide straight cut (spur) close-ratio gears minimize transmission losses and offer a choice of rally, race or drag race gearing.

There is also the choice of a helical set for road and track day applications.

AWD Unit gets Upgraded PPG Transfer Gear Set HO-K4GAWD-RWDG-GA

Key technical features of the QKE8J five-speed Acura / Honda K-series EP3/FN2/DC5 sequential gear kit include:

- Strengthened Outer Casing and Five Wider Gears

- Ultra Fast Sequential Gearshift With Straight Cut or Helical Close-Ratio Gears

- Retains Stock EP3/FN2/DC5 Clutch, Diff, Driveshafts And Mounts

- Optional LED Digital Gear Position Indicator Available

PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever, and cable.

Drag Gear Set Ratios

1ST:  3.100
2ND: 2.067
3RD: 1.421
4TH: 1.048
5TH: 0.870
Final Drive: 4.1 OR 4.3
