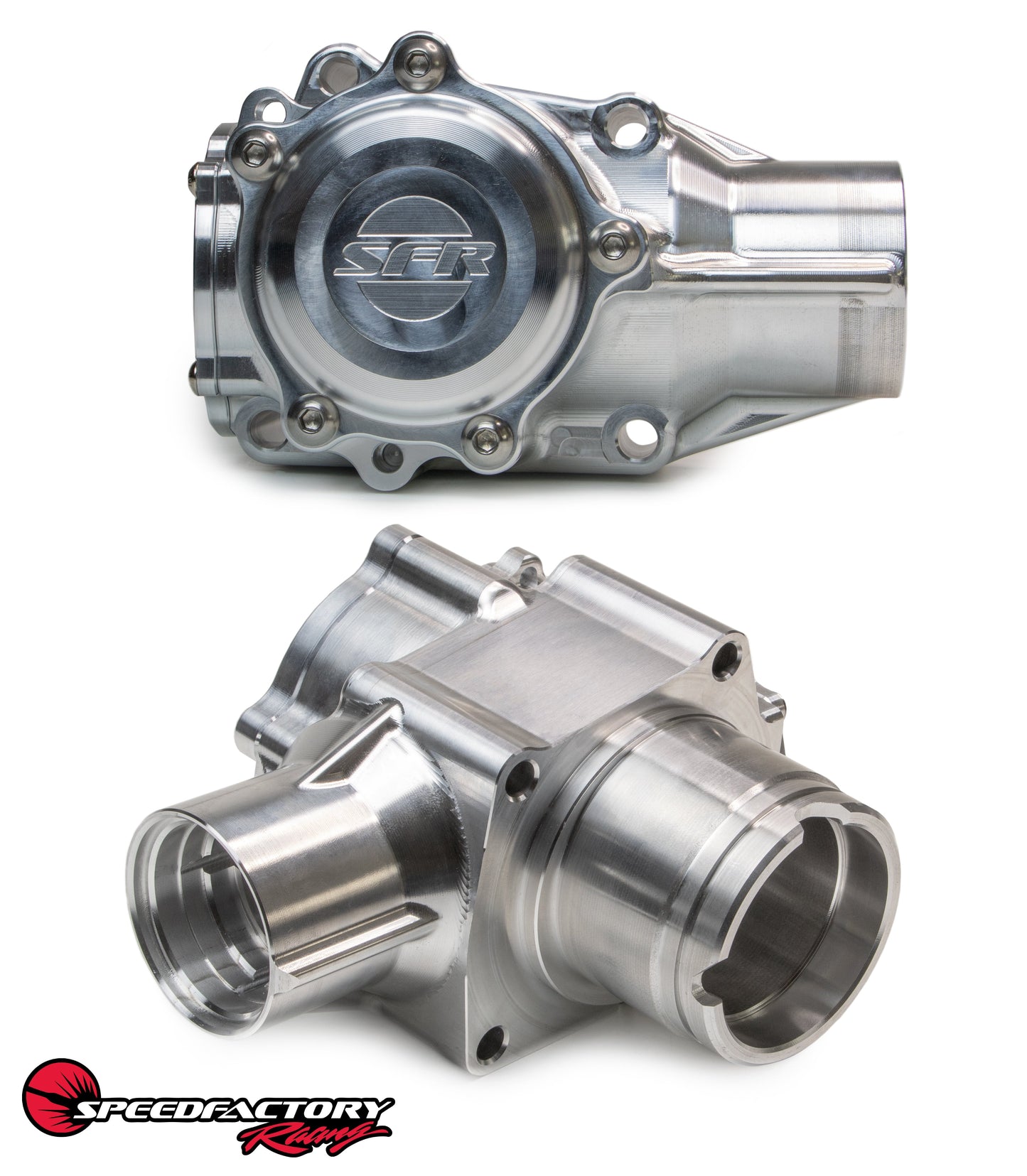

SpeedFactory Racing AWD B-Series Billet Transfer Case

The SpeedFactory Racing AWD B-Series Billet Transfer Case is your ultimate choice - precise, accurate, & pain-free to build unlike others. Proven in our 6 second 2000hp B-Series OUTLAWD drag car.

Unmatched quality & unrivaled performance, a truly functional work of art as noted by all the top teams and shops that have made this housing the foundation of choice for their AWD B-Series racing transfer cases.

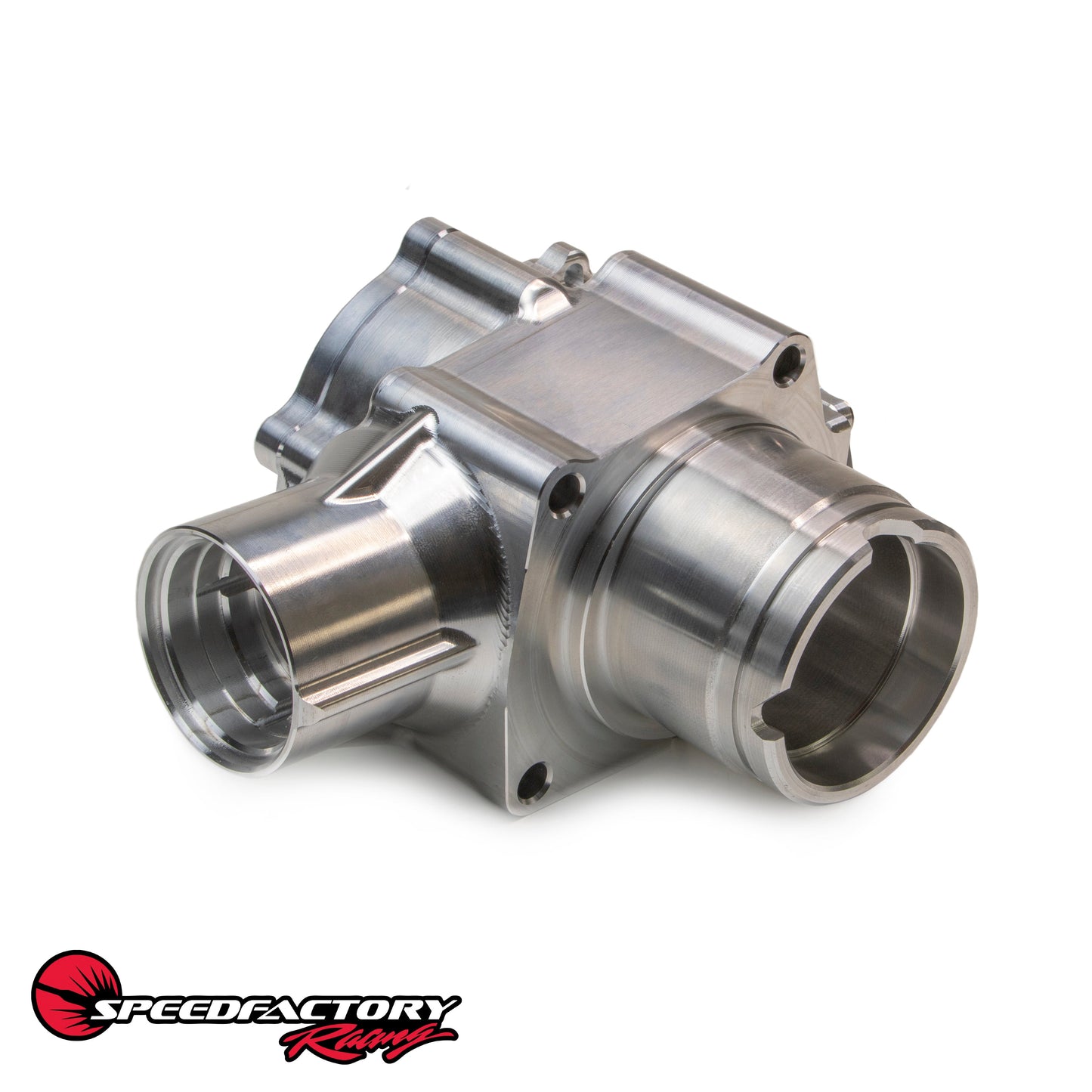

Machined from a Solid 7075-T6 Aluminum Billet, our design is massively stronger than the weak cast OEM case and ~85% stronger than the typically used 6061-T6. You won't be breaking this housing!

Included Items:

• 7075-T6 Billet Housing with inspection cover and bearing cap
• Output shaft seal
• SFR Titanium dowel pin
• Grade 10.9 bolts
• All needed O-rings for 4-bolt inspection cover, 5-bolt bearing cap, and main housing

Superior Incorporated Design Features & Benefits:

• High strength 7075-T6 billet aluminum body

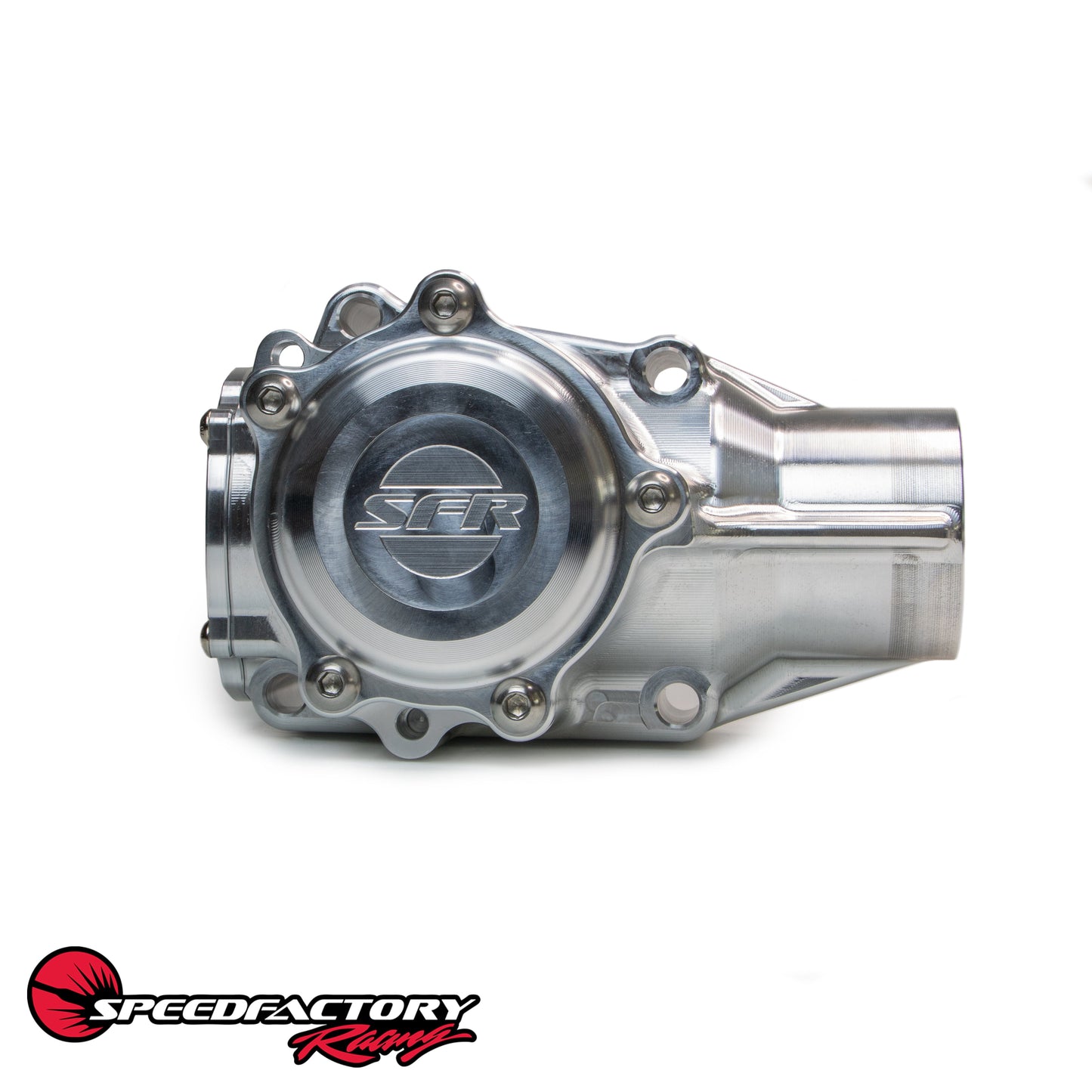

• The bearing cap is also 7075-T6 with ultra thick under-bolt mounting flange and is the strongest available. This keeps the hypoid gears in position better than others - hypoid separation under power is a well-known B-Series transfer case design issue that contributes to breakage

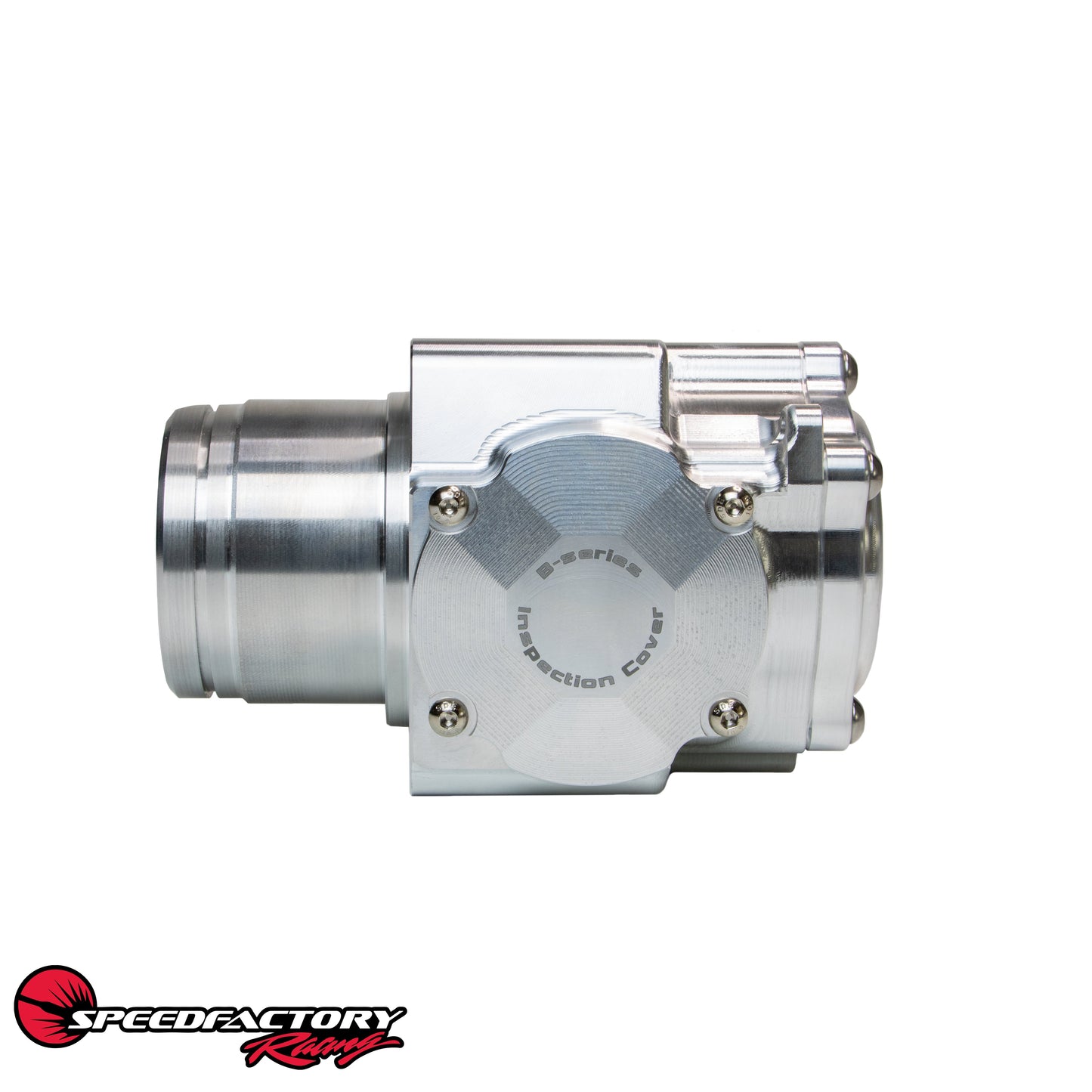

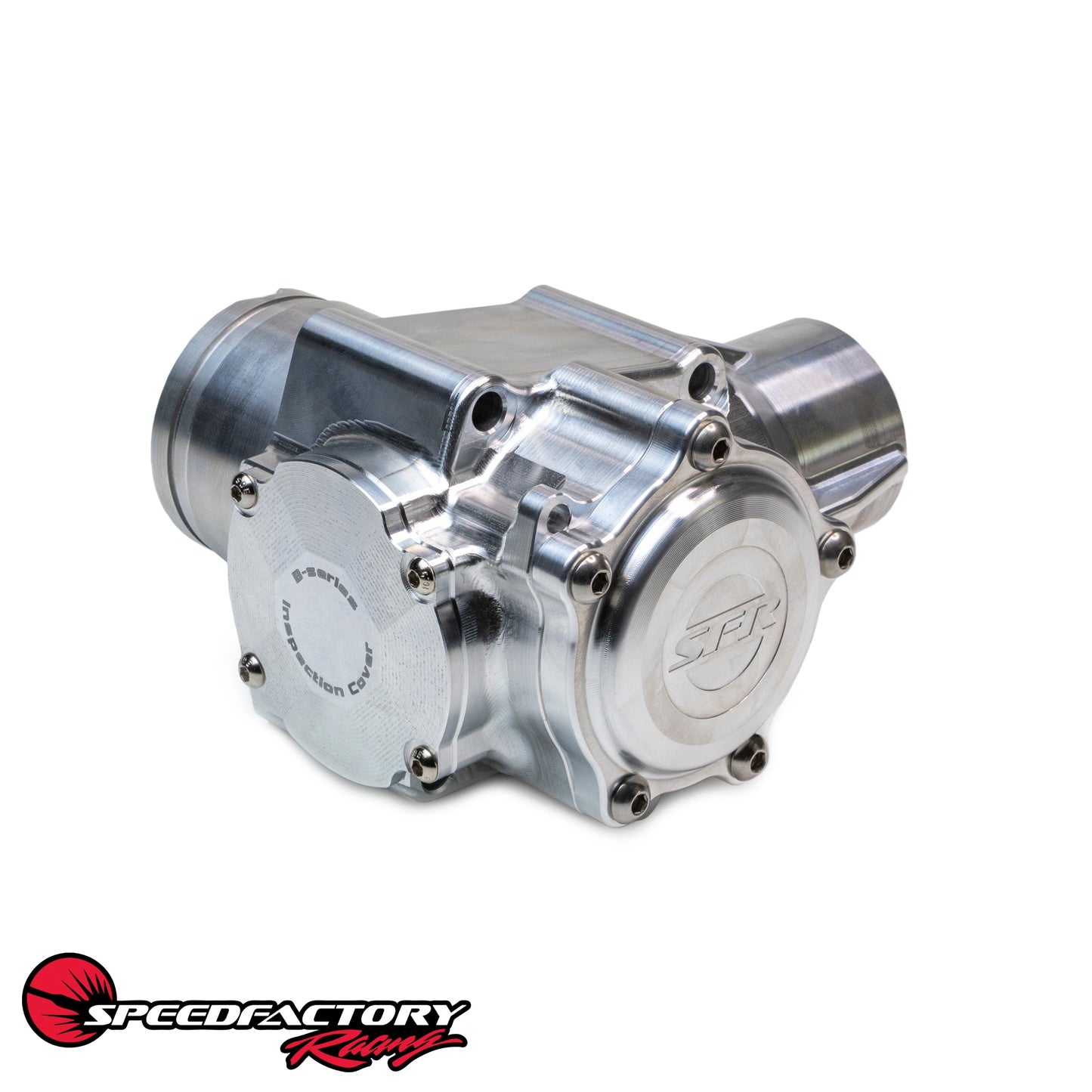

• Large inspection cover makes assembly and inspection a breeze.

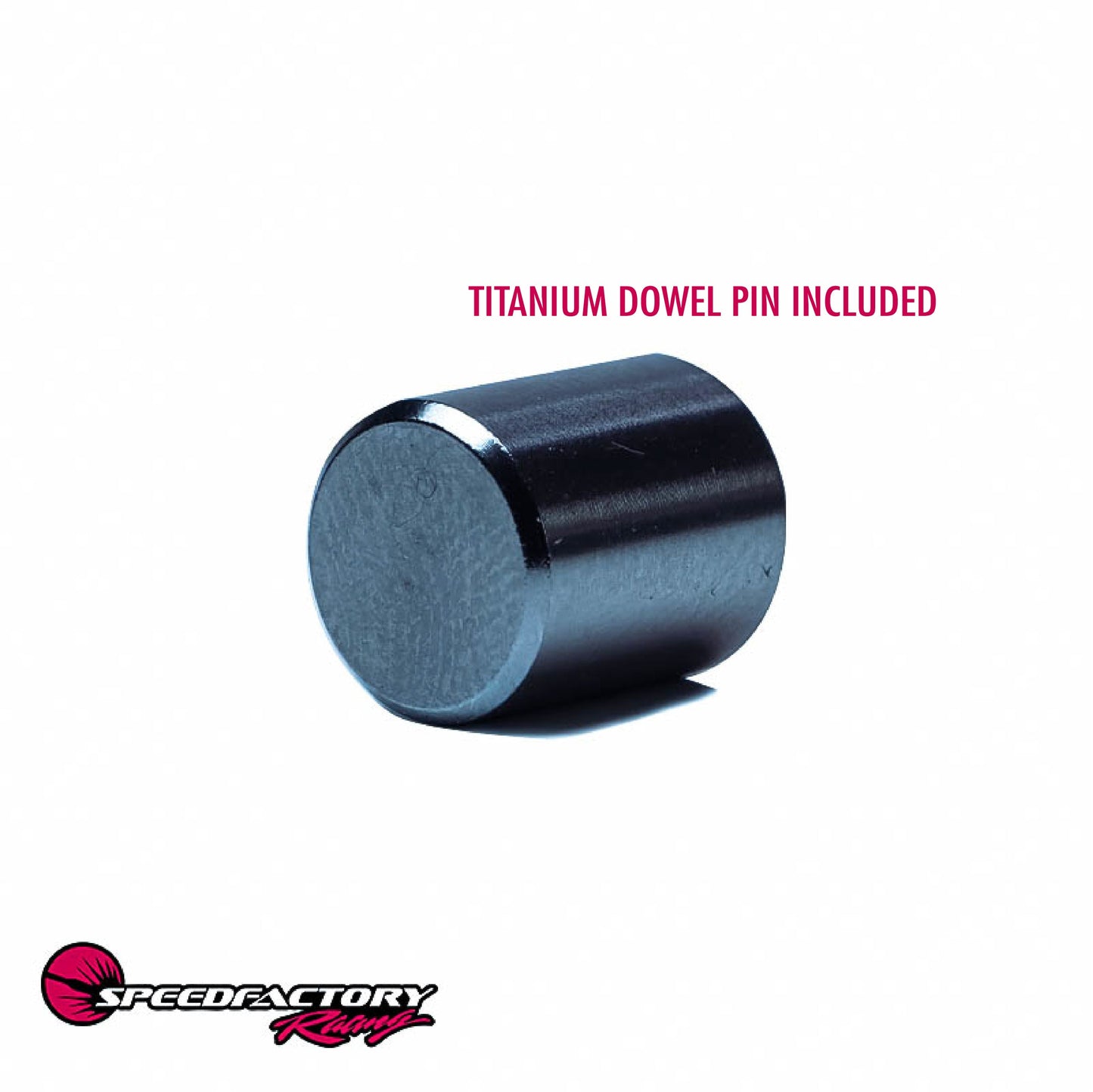

• Includes solid titanium dowel pin which eliminates the usual OEM dowel failures
• No more dealing with multiple different length mounting bolts like OEM - supplied with x4 identical mounting bolts that precisely locate into machined pockets on the transfer case body to stop case rotation under hard launches and eliminates the need for a transfer case to block brace.
• These unique design elements are the result of cumulative real world experience via our engineering, transmission building, and race teams to deliver the ultimate combination of ease of use and strength - you are getting a product that is track tested & proven to deliver ease of use and strength under the most extreme conditions in the World's Fastest B-Series AWD drag cars.

Pair with our AWD B-Series Billet Bellhousing for the ultimate proven B-Series AWD combo!

NOTE: You must have a '99-'01 "PEP" stamped oem transfer case to start building from. Earlier "PBX" stamped transfer cases are not compatible. Requires assembly and shimming to OEM specifications. It is HIGHLY recommended that you have the assembly & installation performed by a reputable specialist that is experienced in building these transfer cases. Compatible with all currently known B-Series transfer drive & hypoid gear sets.
